Hydraulic Cylinders

Our Hydraulic Cylinders are designed and manufactured to meet your individual requirements.

Request a Quote

From a bore size of 20mm up to 350mm, with working pressures going up to 500 bar, we have something to suit your business needs.

Our team can manufacture mild to stainless steel double-acting, single-acting, cushioned, or through rod types to suit your particular application. A range of optional equipment, like cartridge valves, limit switches, and linear potentiometers, can be built into the hydraulic cylinders if required, as part of the computer aided design and manufacturing process.

Our hydraulic cylinders can be used in a variety of applications, from refuse handling to steel processing, water treatment to mining, and much more. We also stock a wide range of hose and couplings.

Hydraulic Systems

Hydraulic systems can be tailored to individual requirements, incorporating our own manufactured cylinders and power units, and linked together using our extensive stocks of hose and fittings, from our sister company Comet Fluid Power. This can be supplied in kit form or fitted at your own premises.

Explore our range below and contact Challenger Hydraulics to request a quote.

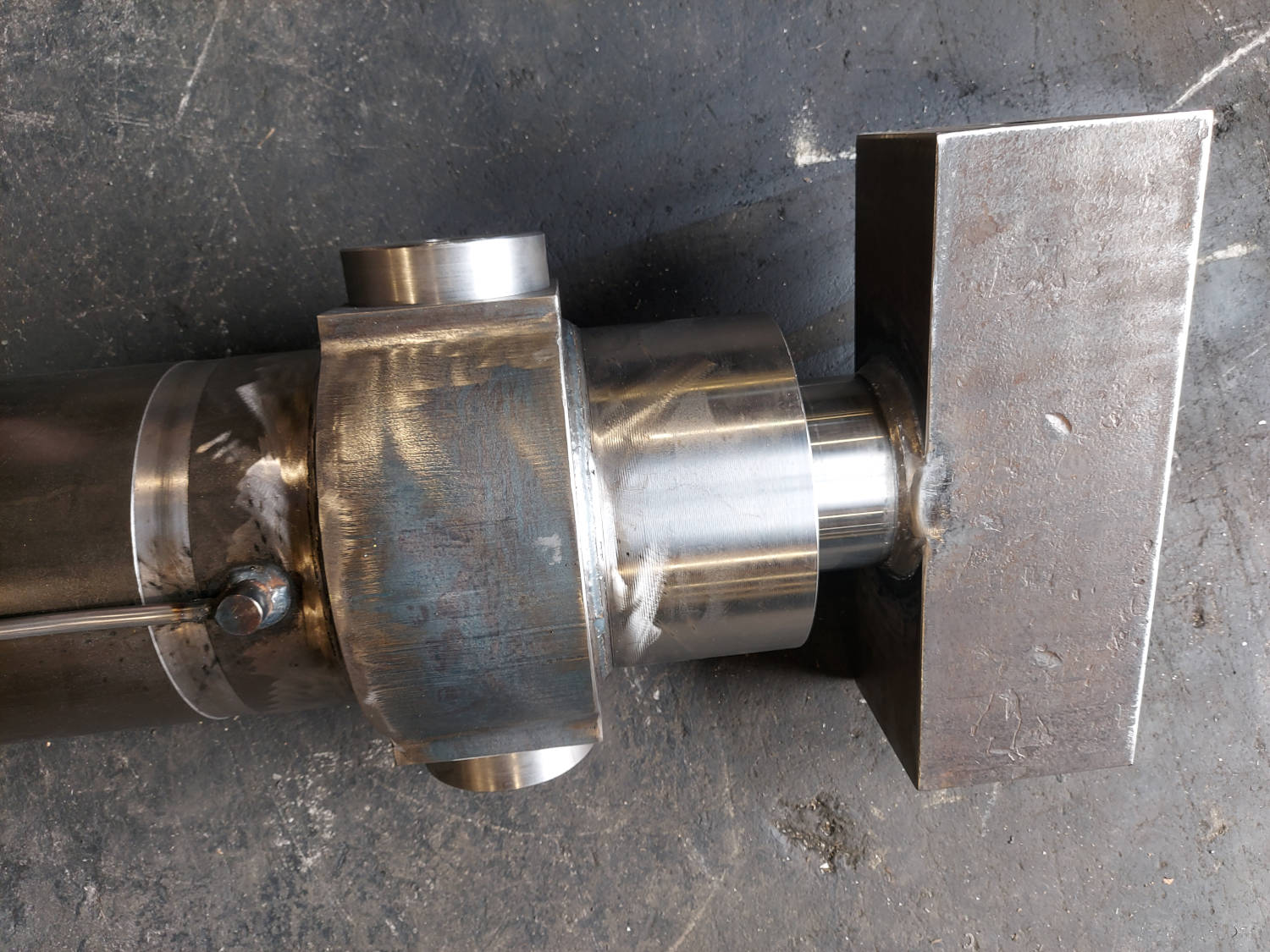

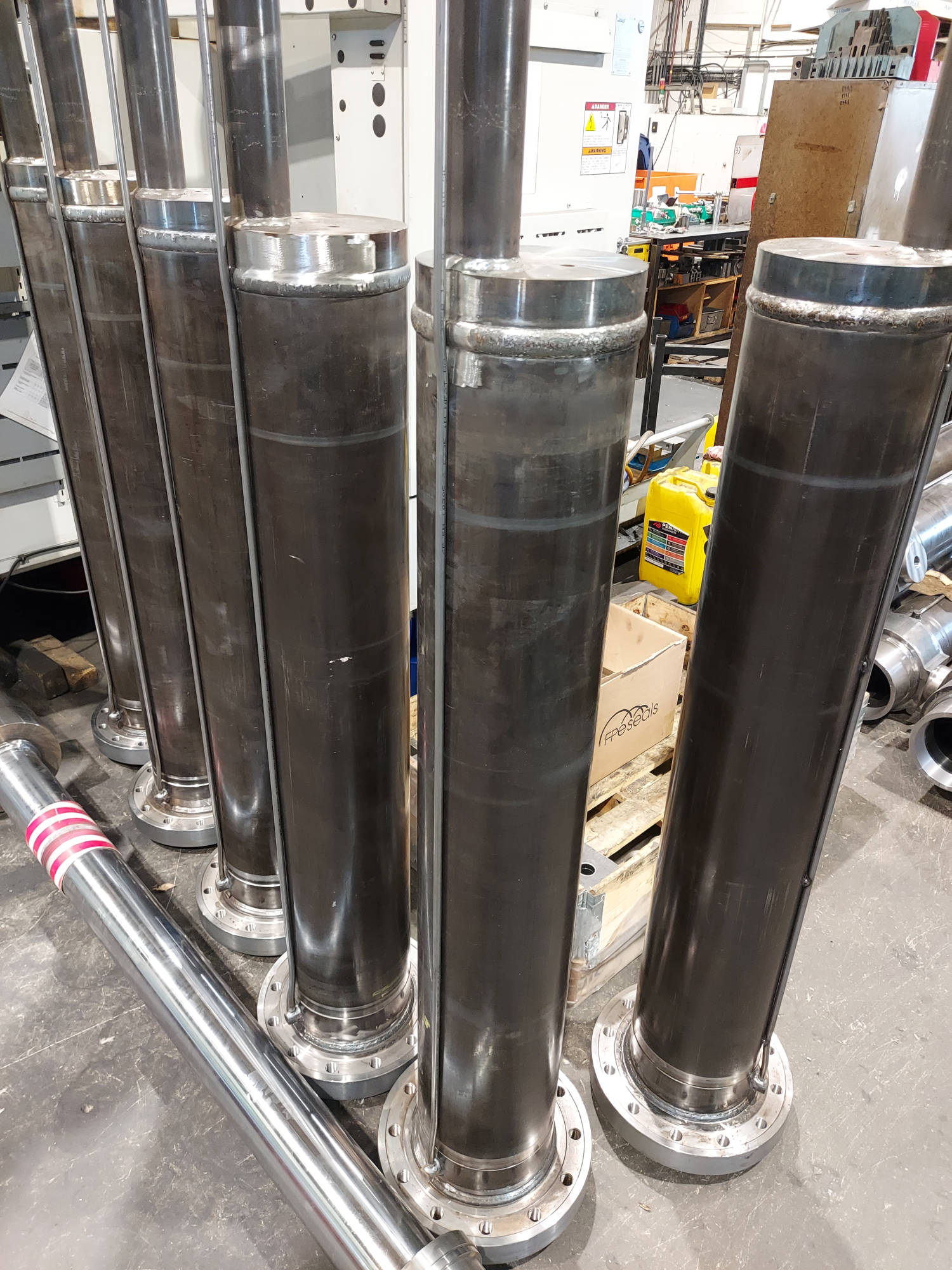

Bespoke Cylinders

At Challenger Hydraulics, we design and manufacture specialist hydraulic cylinders.

Available with a 20mm – 350mm bore tube, 500 bar maximum working pressure, mild steel or stainless steel, and with an integrated circuit valve, linear transducers, proximity switches and cushioning, we can craft cylinders to suit your particular requirements and machinery.

Standard Cylinders

We offer a range of ready-made standard, double acting cylinders, available off-the-shelf.

Available in a variety of specifications, from 32mm to 100mm bore tubes, 50mm – 1000mm stroke, 200 Bar maximum working pressure, and fixed pin hole mountings, these products are ideal for standardised machinery.

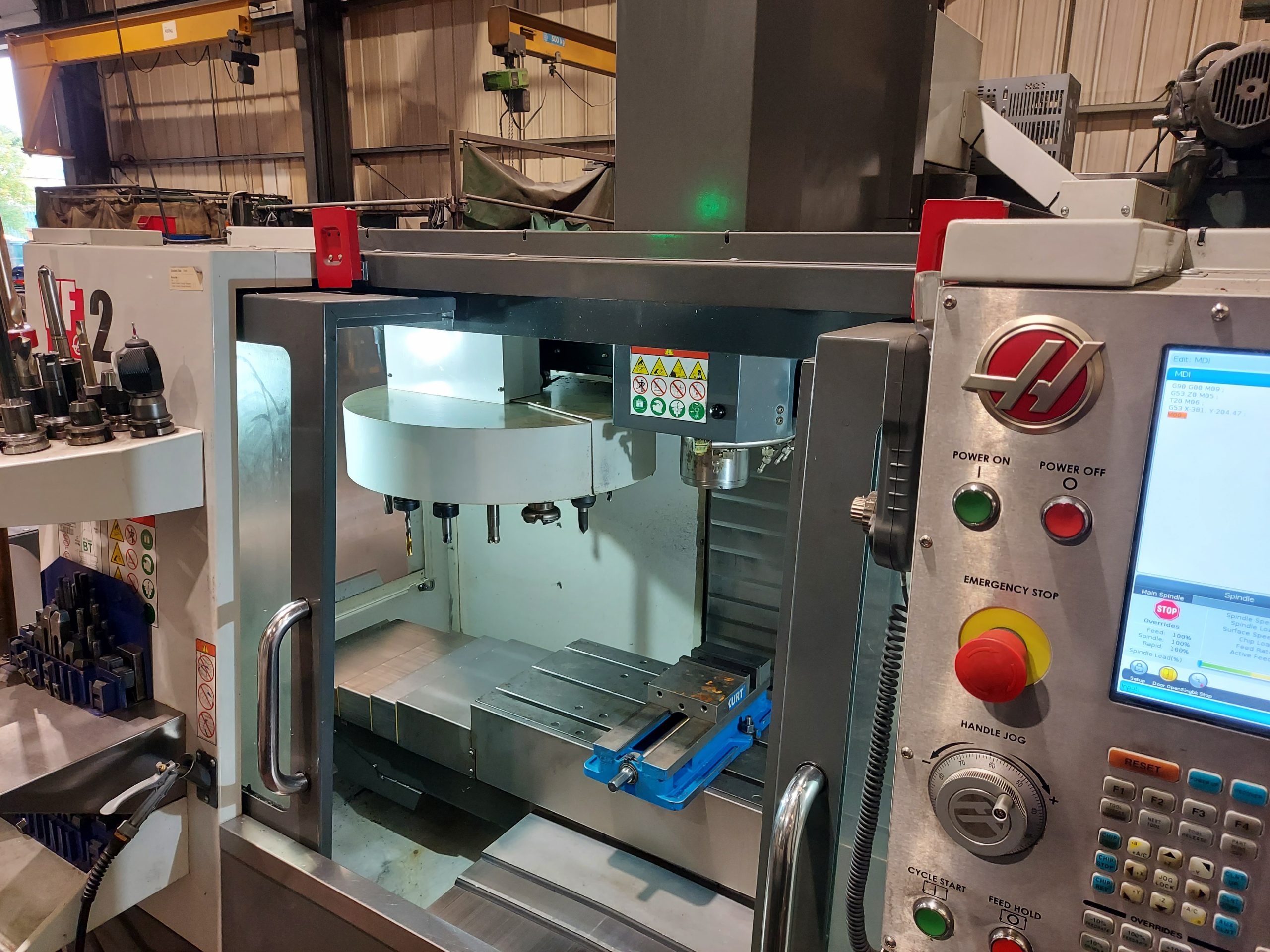

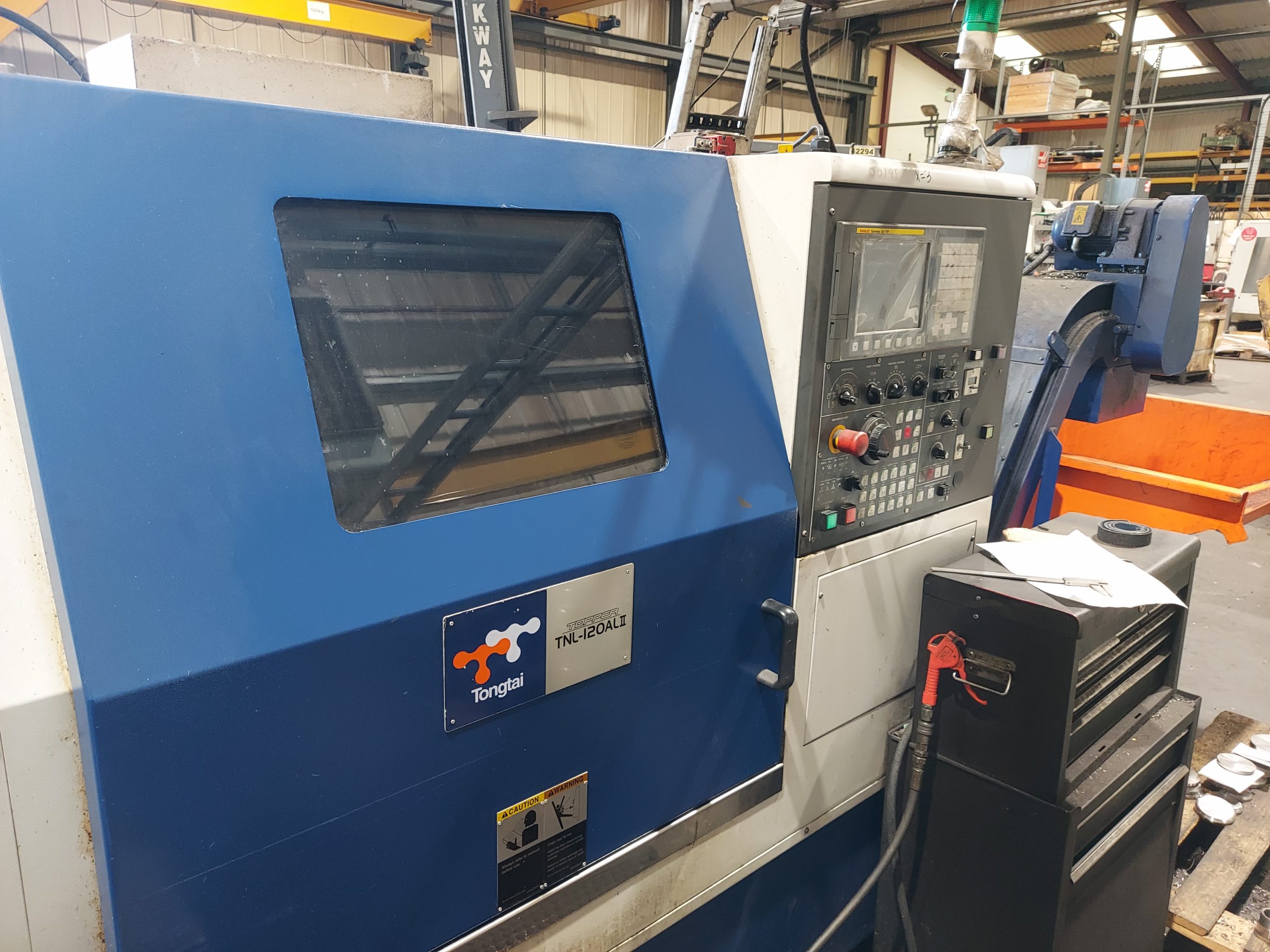

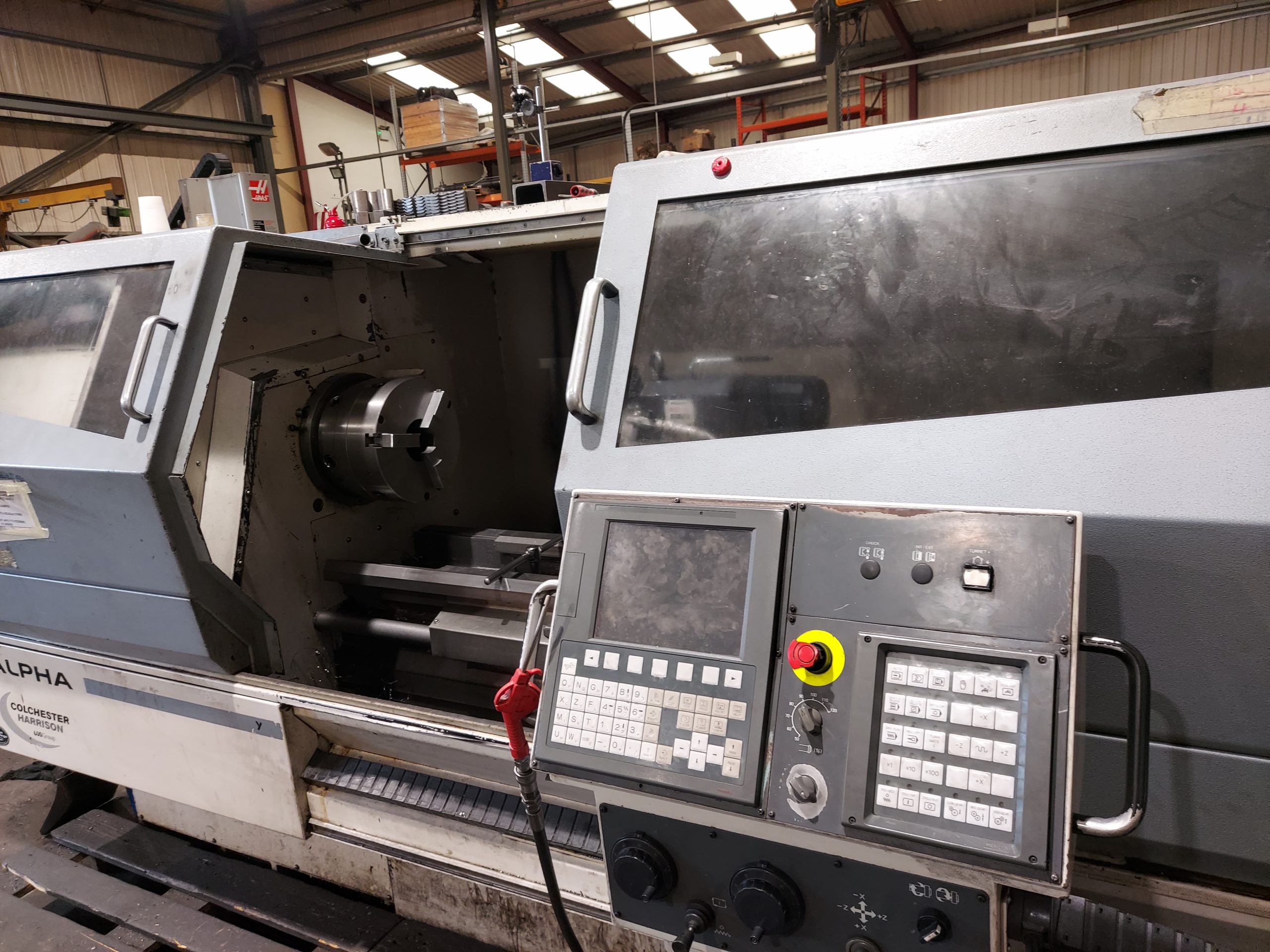

Machine Shop Facilities

Challenger Hydraulics has a fully equipped CNC machine shop facility including lathes, machining centres, robot welding, and a test facility.

Challenger Hydraulics operates a Quality Management System to ISO 9001 2008. Extensive stock is held of standard components used within the manufacture of hydraulic cylinders including pistons, glands, and valves.

Request A Quote
